# cd ~/esp/v5.5.1/esp-idf/tools/requirements # pyenv shell esp # for req in requirements.*.txt; do pip install -r $req; done
Command: Open ESP-IDF Terminal:
1 2 3 4 5
$ echo $IDF_PATH /Users/zhouji/esp/v5.5.1/esp-idf
$ pyenv version esp (set by PYENV_VERSION environment variable)
👆 如果提示：
1
WARNING: Python interpreter "/Users/zhouji/.pyenv/versions/esp/bin/python" used to start idf.py is not from installed venv "/Users/zhouji/.espressif/python_env/idf5.5_py3.14_env
$ . $IDF_PATH/export.sh Checking "python3" ... Python 3.14.0 "python3" has been detected Activating ESP-IDF 5.5 Setting IDF_PATH to '/Users/zhouji/esp/v5.5.1/esp-idf'. * Checking python version ... 3.14.0 * Checking python dependencies ... OK * Deactivating the current ESP-IDF environment (if any) ... OK * Establishing a new ESP-IDF environment ... OK * Identifying shell ... zsh * Detecting outdated tools in system ... OK - no outdated tools found * Shell completion ... Autocompletion code generated
Done! You can now compile ESP-IDF projects. Go to the project directory and run:
idf.py build
$ which python /Users/zhouji/.espressif/python_env/idf5.5_py3.14_env/bin/python
$ which idf.py /Users/zhouji/esp/v5.5.1/esp-idf/tools/idf.py
├── CMakeLists.txt ├── pytest_hello_world.py Python script used for automated testing ├── main │ ├── CMakeLists.txt │ └── hello_world_main.c └── README.md This is the file you are currently reading
Command: SDK Configuration Editor (menuconfig)
如果报错：
1
asyncio.exceptions.LimitOverrunError: Separator is found, but chunk is longer than limit
可以直接打开 ESP-IDF terminal，运行：
1
idf.py menuconfig

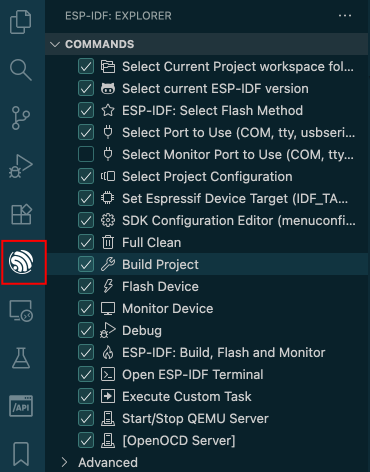

Command: Build Project
Command: Start/Stop QEMU Server » QEMU Monitor / QEMU Debug

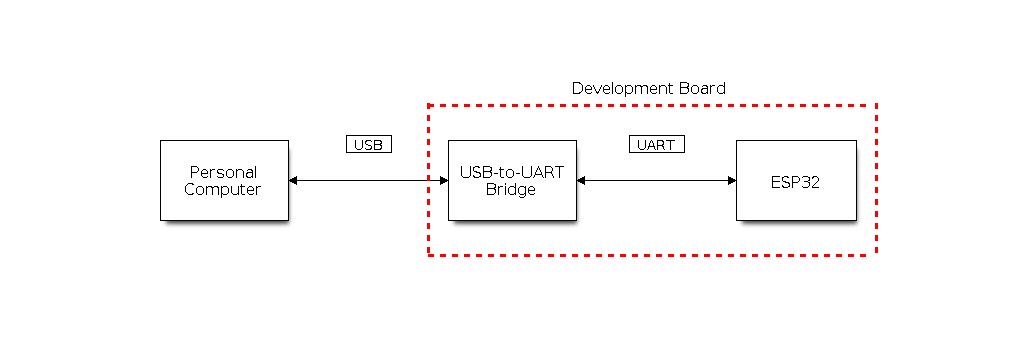

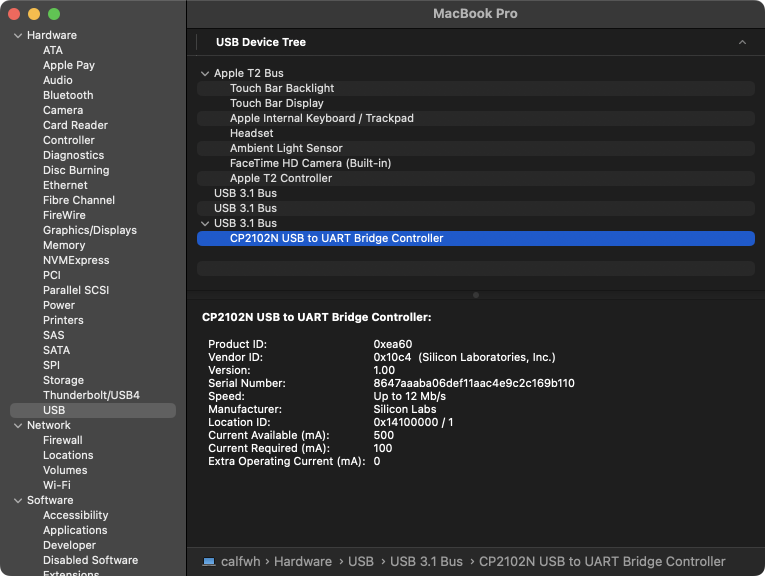

Command: Select Port to Use » /dev/tty.SLAB_USBtoUART.
Command: Select Monitor Port to Use » /dev/tty.SLAB_USBtoUART.
Command: Monitor Device:
全新的板子（芯片），会看到 0xFFFFFFFF 什么的，是因为芯片里还没有任何程序。
Command: Flash Device.
Note
If the device does not support the auto download mode, you need to get into the download mode manually. To do so, press and hold the BOOT button and then press the RESET button once. After that release the BOOT button.
pyenv shell esp esptool.py v4.10.0 Serial port /dev/tty.SLAB_USBtoUART Connecting.... Chip is ESP32-PICO-V3-02 (revision v3.1) Features: WiFi, BT, Dual Core, 240MHz, Embedded Flash, Embedded PSRAM, VRef calibration in efuse, Coding Scheme None Crystal is 40MHz MAC: 00:4b:12:a3:9f:54 Uploading stub... Running stub... Stub running... Changing baud rate to 460800 Changed. Configuring flash size... Flash will be erased from 0x00001000 to 0x00007fff... Flash will be erased from 0x00010000 to 0x00036fff... Flash will be erased from 0x00008000 to 0x00008fff... SHA digest in image updated Compressed 26240 bytes to 16495... Wrote 26240 bytes (16495 compressed) at 0x00001000 in 0.9 seconds (effective 242.8 kbit/s)... Hash of data verified. Compressed 156096 bytes to 85490... Wrote 156096 bytes (85490 compressed) at 0x00010000 in 2.3 seconds (effective 538.9 kbit/s)... Hash of data verified. Compressed 3072 bytes to 103... Wrote 3072 bytes (103 compressed) at 0x00008000 in 0.1 seconds (effective 264.4 kbit/s)... Hash of data verified.
[11:42:07] zhouji@calfwh in ~/lab/try-esp32/hello_world/hello_world () go1.20.2 n20.14.0 L:3 $ '/Users/zhouji/.espressif/python_env/idf5.5_py3.14_env/bin/python' '/Users/zhouji/esp/v5.5.1/esp-idf/tools/idf_monitor.py' -p /dev/tty.SLAB_USBtoUART -b 115200 --toolchain-prefix xtensa-esp32-elf- --make ''/Users/zhouji/.espressif/python_env/idf5.5_py3.14_env/bin/python' '/Users/zhouji/esp/v5.5.1/esp-idf/tools/idf.py'' --target esp32 '/Users/zhouji/lab/try-esp32/hello_world/hello_world/build/h ello_world.elf' --- Warning: Serial ports accessed as /dev/tty.* will hang gdb if launched. --- Using /dev/cu.SLAB_USBtoUART instead... --- esp-idf-monitor 1.8.0 on /dev/cu.SLAB_USBtoUART 115200 --- Quit: Ctrl+] | Menu: Ctrl+T | Help: Ctrl+T followed by Ctrl+H ets Jul 29 2019 12:21:46
rst:0x1 (POWERON_RESET),boot:0x13 (SPI_FAST_FLASH_BOOT) configsip: 271414342, SPIWP:0xee clk_drv:0x00,q_drv:0x00,d_drv:0x00,cs0_drv:0x00,hd_drv:0x00,wp_drv:0x00 mode:DIO, clock div:2 load:0x3fff0030,len:6380 ho 0 tail 12 room 4 load:0x40078000,len:15916 load:0x40080400,len:3860 --- 0x40080400: _invalid_pc_placeholder at /Users/zhouji/esp/v5.5.1/esp-idf/components/xtensa/xtensa_vectors.S:2235 entry 0x40080638 I (30) boot: ESP-IDF v5.5.1-dirty 2nd stage bootloader I (30) boot: compile time Nov 2 2025 01:08:28 I (30) boot: Multicore bootloader I (32) boot: chip revision: v3.1 I (35) boot.esp32: SPI Speed : 40MHz I (38) boot.esp32: SPI Mode : DIO I (42) boot.esp32: SPI Flash Size : 2MB I (45) boot: Enabling RNG early entropy source... I (50) boot: Partition Table: I (53) boot: ## Label Usage Type ST Offset Length I (59) boot: 0 nvs WiFi data 01 02 00009000 00006000 I (65) boot: 1 phy_init RF data 01 01 0000f000 00001000 I (72) boot: 2 factory factory app 00 00 00010000 00100000 I (78) boot: End of partition table I (82) esp_image: segment 0: paddr=00010020 vaddr=3f400020 size=076b0h ( 30384) map I (100) esp_image: segment 1: paddr=000176d8 vaddr=3ffb0000 size=021e8h ( 8680) load I (103) esp_image: segment 2: paddr=000198c8 vaddr=40080000 size=06750h ( 26448) load I (114) esp_image: segment 3: paddr=00020020 vaddr=400d0020 size=0fd58h ( 64856) map I (137) esp_image: segment 4: paddr=0002fd80 vaddr=40086750 size=063ech ( 25580) load I (147) esp_image: segment 5: paddr=00036174 vaddr=50000000 size=00020h ( 32) load I (154) boot: Loaded app from partition at offset 0x10000 I (154) boot: Disabling RNG early entropy source... I (165) cpu_start: Multicore app I (174) cpu_start: Pro cpu start user code I (174) cpu_start: cpu freq: 160000000 Hz I (174) app_init: Application information: I (174) app_init: Project name: hello_world I (178) app_init: App version: 1 I (181) app_init: Compile time: Nov 2 2025 01:08:19 I (186) app_init: ELF file SHA256: 1357622a1... I (191) app_init: ESP-IDF: v5.5.1-dirty I (195) efuse_init: Min chip rev: v0.0 I (199) efuse_init: Max chip rev: v3.99 I (203) efuse_init: Chip rev: v3.1 I (207) heap_init: Initializing. RAM available for dynamic allocation: I (213) heap_init: At 3FFAE6E0 len 00001920 (6 KiB): DRAM I (218) heap_init: At 3FFB2A50 len 0002D5B0 (181 KiB): DRAM I (223) heap_init: At 3FFE0440 len 00003AE0 (14 KiB): D/IRAM I (229) heap_init: At 3FFE4350 len 0001BCB0 (111 KiB): D/IRAM I (234) heap_init: At 4008CB3C len 000134C4 (77 KiB): IRAM I (240) spi_flash: detected chip: generic I (243) spi_flash: flash io: dio W (246) spi_flash: Detected size(8192k) larger than the size in the binary image header(2048k). Using the size in the binary image header. I (259) main_task: Started on CPU0 I (269) main_task: Calling app_main()
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Hello world! This is esp32 chip with 2 CPU core(s), WiFi/BTBLE, silicon revision v3.1, 2MB embedded flash Minimum free heap size: 306072 bytes Restarting in 10 seconds... Restarting in 9 seconds... Restarting in 8 seconds... Restarting in 7 seconds... Restarting in 6 seconds... Restarting in 5 seconds... Restarting in 4 seconds... Restarting in 3 seconds... Restarting in 2 seconds... Restarting in 1 seconds... Restarting in 0 seconds... Restarting now.
