935. Knight Dialer

Problem

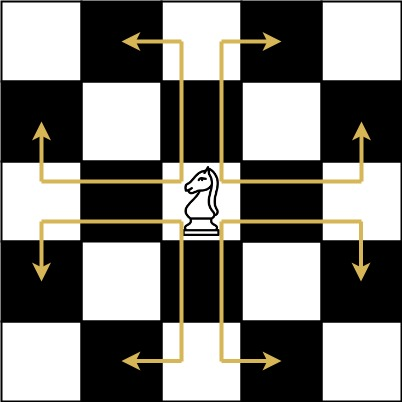

The chess knight has a unique movement, it may move two squares vertically and one square horizontally, or two squares horizontally and one square vertically (with both forming the shape of an L). The possible movements of chess knight are shown in this diagram:

A chess knight can move as indicated in the chess diagram below:

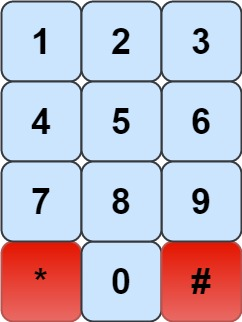

We have a chess knight and a phone pad as shown below, the knight can only stand on a numeric cell (i.e. blue cell).

Given an integer n, return how many distinct phone numbers of length n we can dial.

You are allowed to place the knight on any numeric cell initially and then you should perform n - 1 jumps to dial a number of length n. All jumps should be valid knight jumps.

As the answer may be very large, return the answer modulo 10⁹ + 7.

https://leetcode.cn/problems/knight-dialer/

Example 1:

Input: n = 1
Output: 10
Explanation: We need to dial a number of length 1, so placing the knight over any numeric cell of the 10 cells is sufficient.

Example 2:

Input: n = 2
Output: 20
Explanation: All the valid number we can dial are [04, 06, 16, 18, 27, 29, 34, 38, 40, 43, 49, 60, 61, 67, 72, 76, 81, 83, 92, 94].

Example 3:

Input: n = 3131
Output: 136006598
Explanation: Please take care of the mod.

Constraints:

1 <= n <= 5000

Test Cases

1 2	class Solution: def knightDialer(self, n: int) -> int:

solution_test.py

import pytest

from solution import Solution
from solution2 import Solution as Solution2
from solution3 import Solution as Solution3


@pytest.mark.parametrize('n, expected', [
    (1, 10),
    (2, 20),
    (3131, 136006598),
])
class Test:
    def test_solution(self, n, expected):
        sol = Solution()
        assert sol.knightDialer(n) == expected

    def test_solution2(self, n, expected):
        sol = Solution2()
        assert sol.knightDialer(n) == expected

    def test_solution3(self, n, expected):
        sol = Solution3()
        assert sol.knightDialer(n) == expected

Thoughts

记 cnts(d, i) 表示按 i 次按键，且最后一个是 d（0 <= d <= 9）的情况下，能得到的长度为 i 的不同电话号码数量。题目所求结果为 $\sum_{d=0}^9cnts(d,n)$ 。

显然有初始值 cnts(d, 1) = 1。递推式为 $cnts(d,i)=\sum_s{cnts(s,i-1)}$ ，其中 s 是所有能一步跳到 d 的按键，可以按照键盘的结构计算出来，也可以提前计算好，用的时候直接查表。

d	s
0	4, 6
1	6, 8
2	7, 9
3	4, 8
4	0, 3, 9
5	n/a
6	0, 1, 7
7	2, 6
8	1, 3
9	2, 4

直接按照初始值加递推公式计算即可。

因为计算 cnts(*, i) 时只需要用到 cnts(*, i-1)，所以只需要保留前一组 cnts 结果即可。

时间复杂度 O(n)，空间复杂度 O(1)（按键的个数记为常数）。

Code

solution.py

class Solution:
    def knightDialer(self, n: int) -> int:
        MOD = 1_000_000_007
        srcs = [(4, 6), (6, 8), (7, 9), (4, 8), (0, 3, 9), (), (0, 1, 7), (2, 6), (1, 3), (2, 4)]
        cnts = [1] * 10
        tmp = [0] * 10
        for _ in range(n - 1):
            for d, src in enumerate(srcs):
                tmp[d] = sum(cnts[s] for s in src) % MOD
            cnts, tmp = tmp, cnts

        return sum(cnts) % MOD

Faster

上边的每次循环里需要计算 10 组，每一组还要计算 2 到 3 次不等。可以发现有些按键是完全对称的，它们的 cnts 值永远都一样。

观察按键布局，很容易发现首先当 i > 1 时，按键 5 永远不可达，可以丢弃。剩下的 9 个按键，可以分为 4 组，每组内各个按键的 cnts 是始终一致的。这 4 组分别为：

A: 1, 3, 7, 9
B: 2, 8
C: 4, 6
D: 0

把每个按键数字的分组对应更新到上边的表中得到：

g(d)	d	s	g(s)
D	0	4, 6	C, C
A	1	6, 8	C, B
B	2	7, 9	A, A
A	3	4, 8	C, B
C	4	0, 3, 9	D, A, A
n/a	5	n/a	n/a
C	6	0, 1, 7	D, A, A
A	7	2, 6	B, C
B	8	1, 3	A, A
A	9	2, 4	B, C

可以得到初值和递推公式：

\begin{cases} A_1=B_1=C_1=D_1=1 \\ A_{i}=B_{i-1}+C_{i-1} \\ B_{i}=2\times A_{i-1} \\ C_{i}=2\times A_{i-1}+D_{i-1} \\ D_{i}=2\times C_{i-1} \end{cases}

最终的结果应为 $4\times A_n+2\times B_n+2\times C_n+D_n$ 。

时间和空间复杂度不变，但运算量会少很多。

solution2.py

class Solution:
    def knightDialer(self, n: int) -> int:
        if n == 1: return 10
        MOD = 1_000_000_007
        cnts = [1] * 4
        tmp = [0] * 4
        for _ in range(n - 1):
            tmp[0] = (cnts[1] + cnts[2]) % MOD # Digits 1, 3, 7, 9.
            tmp[1] = (cnts[0] << 1) % MOD # Digits 2, 8.
            tmp[2] = (tmp[1] + cnts[3]) % MOD # Digits 4, 6.
            tmp[3] = (cnts[2] << 1) % MOD # Digit 0.
            cnts, tmp = tmp, cnts

        return sum((cnts[0] << 2, cnts[1] << 1, cnts[2] << 1, cnts[3])) % MOD

O(log n)

在 70. Climbing Stairs 中使用矩阵幂运算用 O(log n) 时间计算斐波那契（Fibonacci）数，这里也可以用类似的方法。

把上边关于 A、B、C、D 的递推式改造成矩阵形式：

\begin{bmatrix} A_n \\ B_n \\ C_n \\ D_n \end{bmatrix} =\begin{bmatrix} 0 & 1 & 1 & 0 \\ 2 & 0 & 0 & 0 \\ 2 & 0 & 0 & 1 \\ 0 & 0 & 2 & 0 \end{bmatrix} \times\begin{bmatrix} A_{n-1} \\ B_{n-1} \\ C_{n-1} \\ D_{n-1} \end{bmatrix}

递推展开可得：

\begin{bmatrix} A_n \\ B_n \\ C_n \\ D_n \end{bmatrix} =\begin{bmatrix} 0 & 1 & 1 & 0 \\ 2 & 0 & 0 & 0 \\ 2 & 0 & 0 & 1 \\ 0 & 0 & 2 & 0 \end{bmatrix}^{n-1} \times\begin{bmatrix} 1 \\ 1 \\ 1 \\ 1 \end{bmatrix}

所以最终结果为：

\begin{bmatrix} 4 & 2 & 2 & 1 \end{bmatrix} \times\begin{bmatrix} 0 & 1 & 1 & 0 \\ 2 & 0 & 0 & 0 \\ 2 & 0 & 0 & 1 \\ 0 & 0 & 2 & 0 \end{bmatrix}^{n-1} \times\begin{bmatrix} 1 \\ 1 \\ 1 \\ 1 \end{bmatrix}

中间的矩阵幂运算可以用 O(log n) 时间完成。

因为本题会一直对 10⁹ + 7 取模，不涉及到大整数计算，所以二进制位数带来的时间复杂度是常数，最终时间复杂度是 O(log n)。

solution3.py

MOD = 1_000_000_007


def prod(a: list[list[int]], b: list[list[int]]) -> list[list[int]]:
    # `a` is an m*k matrix, `b` is a k*n matrix.
    # Returns a m*n matrix which is a x b.
    m = len(a)
    k = len(b)
    n = len(b[0])
    res = [[sum(a[r][i] * b[i][c] for i in range(k)) % MOD for c in range(n)] for r in range(m)]
    return res


class Solution:
    def knightDialer(self, n: int) -> int:
        if n == 1: return 10

        n -= 1
        mask = 1
        n1 = n
        while n1 := n1 >> 1:
            mask <<= 1

        m = [[0, 1, 1, 0], [2, 0, 0, 0], [2, 0, 0, 1], [0, 0, 2, 0]]
        res = m
        while mask := mask >> 1:
            res = prod(res, res)
            if n & mask:
                res = prod(res, m)

        m0 = [[1], [1], [1], [1]]
        k = [[4, 2, 2, 1]]
        res = prod(k, prod(res, m0))
        return res[0][0] % MOD
