221. Maximal Square

Problem

Given an m x n binary matrix filled with 0’s and 1’s, find the largest square containing only 1’s and return its area.

https://leetcode.com/problems/maximal-square/

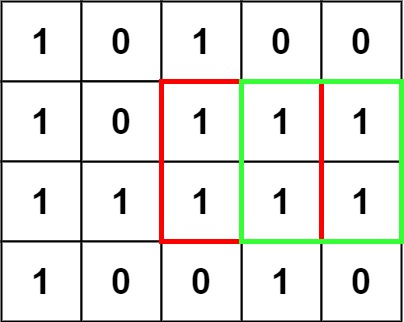

Example 1:

Input: matrix = [["1","0","1","0","0"],["1","0","1","1","1"],["1","1","1","1","1"],["1","0","0","1","0"]]
Output: 4

Example 2:

Input: matrix = [["0","1"],["1","0"]]
Output: 1

Example 3:

Input: matrix = [["0"]]
Output: 0

Constraints:

m == matrix.length
n == matrix[i].length
1 <= m, n <= 300
matrix[i][j] is '0' or '1'.

Test Cases

python
class Solution:
    def maximalSquare(self, matrix: List[List[str]]) -> int:

solution_test.py下载完整源码
py
import pytest

from solution import Solution


@pytest.mark.parametrize('matrix, expected', [
    ([["1","0","1","0","0"],["1","0","1","1","1"],["1","1","1","1","1"],["1","0","0","1","0"]], 4),
    ([["0","1"],["1","0"]], 1),
    ([["0"]], 0),

    ([["1","0","1","0"],["1","0","1","1"],["1","0","1","1"],["1","1","1","1"]], 4),
])
@pytest.mark.parametrize('sol', [Solution()])
def test_solution(sol, matrix, expected):
    assert sol.maximalSquare(matrix) == expected

Thoughts

对于任意格子 (i, j)（0 ≤ i < m、0 ≤ j < n），定义三个状态量：

h(i, j) 表示以格子 (i, j) 为最右端的连续 '1' 的个数。
v(i, j) 表示以格子 (i, j) 为最下端的连续 '1' 的个数。
s(i, j) 表示以格子 (i, j) 为右下角的全 '1' 正方形的边长。

可得状态转移方程：

当 matrix[i][j] = '0' 时：

\begin{cases} h(i,j)=0 \\ v(i,j)=0 \\ s(i,j)=0 \end{cases}

当 matrix[i][j] = '1' 时：

\begin{cases} h(i,j)=h(i,j-1)+1 \\ v(i,j)=v(i-1,j)+1 \\ s(i,j)=\min\begin{cases} s(i-1,j-1)+1 \\ h(i,j) \\ v(i,j) \end{cases} \end{cases}

边界值 h(i, -1) = v(-1, j) = s(-1, -1) = s(i, -1) = s(-1, j) = 0。递推过程中记录最大的 s 值，取平方则为题目所求结果。

根据状态转移方程的依赖关系，在递推过程中只需要保留一行的 v 和 s 值，只需要保留当前行的一个 h 值。

整体时间复杂度 O(m * n)，空间复杂度 O(n)。

Code

solution.py下载完整源码
py
class Solution:
    def maximalSquare(self, matrix: list[list[str]]) -> int:
        m = len(matrix)
        n = len(matrix[0])
        v = [0] * n
        s = [0] * n
        max_s = 0
        for i in range(m):
            h = 0
            prev_s = 0
            for j in range(n):
                if matrix[i][j] == '0':
                    h = 0
                    v[j] = 0
                    prev_s, s[j] = s[j], 0
                else:
                    h += 1
                    v[j] += 1
                    prev_s, s[j] = s[j], min(prev_s + 1, h, v[j])
                    if s[j] > max_s:
                        max_s = s[j]

        return max_s * max_s
